Autoclave Pressure Cooker Type

Autoclave Pressure Cooker Type Manufacturers in India

Autoclave Pressure Cooker Type
Autoclave Pressure Cooker Type

Product Code :

SE-0060-0066

Product Name :

Autoclave Pressure Cooker Type

Product Information

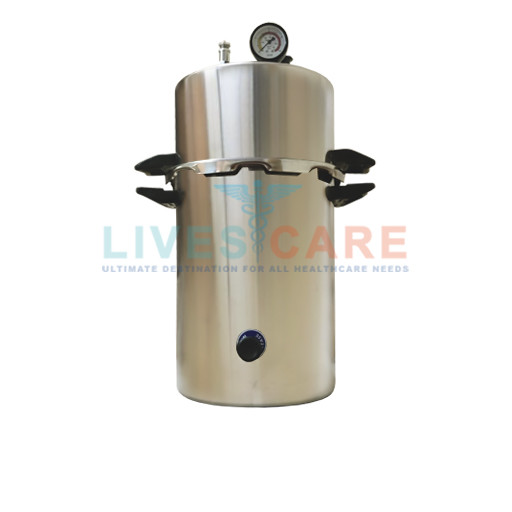

Pressure Cooker Type Autoclave

Constructed from stainless steel.

Designed to operate on an external heat source (non-electric) at 120 deg. C within approx. 20-25 minutes.

Steam sterilizer provided with handles, a cover, and a rubber seal gasket.

Pressure safety valve & safety plug.

Seamless reinforced boiler.

Supplied with manometer or pressure gauge.

With a removable lid to fit and insulated handles.

To remove the lid slightly turn the same and lift smoothly.

Stainless steel baskets can be provided as per customer request.

With all standard accessories.

Non-Electric.

Also available as Electric Operated (Power: 2000 Watts, 220/240 Volts A/C).

The following sizes are available:

Capacity

Size

9 ltrs.

9”x9”

11 ltrs.

9”x11”

16 ltrs.

9”x16”

21 ltrs.

12”x12”

25 ltrs.

12”x14”)

34 ltrs.

14”x13”

39 ltrs.

14”x16”

40 ltrs.

12”x22”

SEND ENQUIRY DOWNLOAD CATALOGUE

‘We reserve the right to alter the designs & features of products for advancement without notice’

Customer Reviews

Similar Products

Portable Autoclave

SE-0046-0054

Aluminium Electric Pressure Cooker ...

  • Aluminium made with mirror finish.
  • Light weight & portable.
  • Seamless construction.
  • Sturdy, rust-proof & safe.
  • Simple Operation. For high-pressure steam sterilization of medical materials, Surgical dressings and Instruments.
  • Max. Pressure 15 psi/1.5 bar.
  • Max. temperature: 121 deg. C.
  • Equipped with steam release/control valve and high-quality heat-resistant bakelite handles.
  • Lid sealing by high-quality rubber gasket.
  • Pressure gauge with colour coding to display sterilization zones, graduated in kg/cm2 and lb/inch2.
  • Equipped with safety Pressure release /steam control valve.
  • High-quality heating element for longer life.
  • Electric, 220V/50Hz, single phase.

Available sizes:

Size Ident. No. Size in inches (DxH) including Lid Size in mm (DxH) incl. Lid. Capacity in ltrs.
I 9 x 9 225 x 225 10
II 9 x 11 225 x 275 12
III 9 x 13 225 x 325 15
IV 12 x 8 300 x 200 16
V 12 x 11 300 x 275 18
VI 12 x 12 300 x 300 23.5
VII 12 x 13" 300 x 325 24
VIII 12 x 14 300 x 350 26
IX 12 x 16 300 x 400 30
X 12 x 18 300 x 450 33.5
XI 12 x 22 300 x 550 40
XII 12 x 24 300 x 600 44
XIII 14 x 13 350 x 325 35
XIV 14 x 15 350 x 375 36
XV 14 x 17 350 x 425 41
XVI 14 x 19 350 x 475 45
XVII 14 x 21 350 x 525 50
XVIII 14 x 24 350 x 600 60



You may be interested in the following products too:

Wing Nut Autoclave, Non-Electric

Wing Nut Type Autoclave, Electric

Wing Nut Type Autoclave, electric with Thermostat/Timer

Fully Automatic Vertical Autoclave

Vertical Autoclave

Aluminium Non Electric Pressure Cooker Type Autoclave

Portable Autoclave - Stainless Steel

Vertical Hospital Autoclave

Autoclave Pressure Cooker Type

Pressure Cooker Type Autoclave

SE-0047-0054

Aluminium Non-Electric Pressure Coo ...

  • Body and Lid made from thick aluminium for more safety and life long performance
  • Mirror finish.
  • Anti-building & fuel saver base for Additional Strength, Fuel Saving and Time Saving.
  • Depression at xentre of Lid for Additional Strength

  • Light weight & portable.
  • Seamless construction.
  • Sturdy, rust proof & safe.
  • Simple Operation. For high pressure steam sterilization of medical materials, Surgical dressings and Instruments.
  • Max. Pressure 15 psi/1.5 bar.
  • Max. temperature : 121 deg. C.
  • Equiped with steam release/control valve.
  • Handles made from heat resistant, impact tolerant, finest quality bakelite, fitted with Stainless Steel screws to avoid easy loosening of handles.
  • Gasket Release System (GRS) & Fusible plug type safety valve for Triple-safety.
  • Repeating type safety valve for better Safety and longer & error-free performance.

  • Lid sealing by high quality synthetic rubber gasket for better reliability, hygiene & longer life.

  • Pressure gauge with colour coding to indicate the safe and danger zones (sterilization zones), graduated in kg/cm2 and lb/inch2.
  • Equipped with safety Pressure release /steam control valve.
  • Inside Tripod Stand : Inner Tripod Stand made of Stainless Steel and with extra height to avoid wetting of instruments.
  • Non-Electric (Heating by external source such as Gas stove or Kerosene stove)
  • Syringe rack : Optional.

Available sizes:

Size Ident. No. Size in inches (DxH) including Lid Size in mm (DxH) incl. Lid. Capacity in ltrs.
I 9 x 9 225 x 225 10
II 9 x 11 225 x 275 13
III 9 x 13 225 x 325 15
IV 12 X 8 300 x 200 16
V 12 x 11 300 x 275 18
VI 12 x 12 300 x 300 23.5
VII 12 x 13 300 x 325 24
VIII 12 x 14 300 x 350 26
IX 12 x 16 300 x 400 30
X 12 x 18 300 x 450 33.5
XI 12 x 22 300 x 550 40
XII 12 x 24 300 x 600 44
XIII 14 x 13 350 x 325 35
XIV 14 x 15 350 x 375 36
XV 14 x 17 350 x 425 41
XVI 14 x 19 350 x 475 45
XVII 14 x 21 350 x 525 50
XIX 14 x 24 350 x 600 60




You may be interested in the following products too:

Wing Nut Autoclave, Non-Electric

Wing Nut Type Autoclave, Electric

Wing Nut Type Autoclave, electric with Thermostat/Timer

Aluminium Electric Pressure Cooker Type Autoclave

Vertical Autoclave

Fully Automatic Vertical Autoclave

Portable Autoclave - Stainless Steel

Vertical Hospital Autoclave

Autoclave Pressure Cooker Type

Autoclave Pressure Cooker Type

SE-0059-0066

Autoclave Pressure Cooker Type

Autoclave Pressure Cooker Type / Portable Stainless Steel Pressure Cooker Type Autoclave / Steam Sterilization unit / Steam Sterilizer.

Non-Electric and heating by external fuel/gas burner for sterilization of medical instruments and other products.

Constructed from stainless steel.

Designed to operate on an external heat source (non-electric) at 120 deg. C within approx. 20-25 minutes.

Steam sterilizer provided with handles, a cover, and rubber seal gasket.

Pressure safety valve & safety plug.

Seamless reinforced boiler.

Supplied with manometer or pressure gauge.

With a removable lid to fit and insulated handles.

To remove the lid slightly turn the same and lift smoothly.

Stainless steel baskets can be provided as per customer request.

With all standard accessories.

Also Available Electric Operated Stainless Steel Pressure Cooker Type Autoclave (Steam Sterilizer / Portable Pressure Cooker Type Autoclave), 2000 Watts, 220/240 Volts A/C.

Available Sizes :

Capacity Size
9 ltrs. 9”x9”
11 ltrs. 9”x11”
16 ltrs. 9”x16”
21 ltrs. 12”x12”
25 ltrs. 12”x14”)
34 ltrs. 14”x13”
39 ltrs. 14”x16”
40 ltrs. 12”x22”
