Manual Vacuum Aspirator Kit Manufacturers

MVA Kit Manufacturers

Manufacturer of Manual Vacuum Aspirator Kit
Manufacturer of Manual Vacuum Aspirator Kit
Manufacturer of Manual Vacuum Aspirator Kit
Manufacturer of Manual Vacuum Aspirator Kit

Product Code :

MSK-0063-0003

Product Name :

Manual Vacuum Aspirator Kit

Product Information

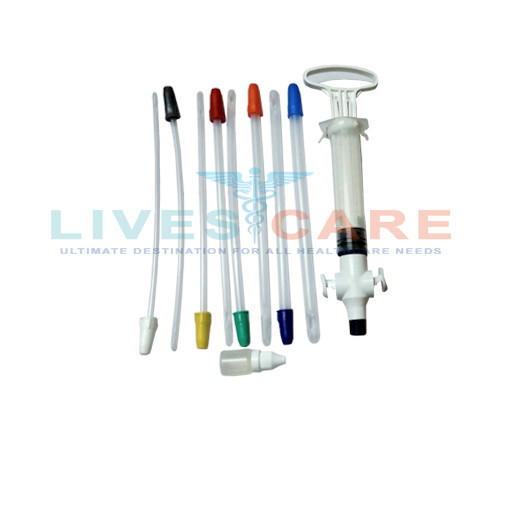

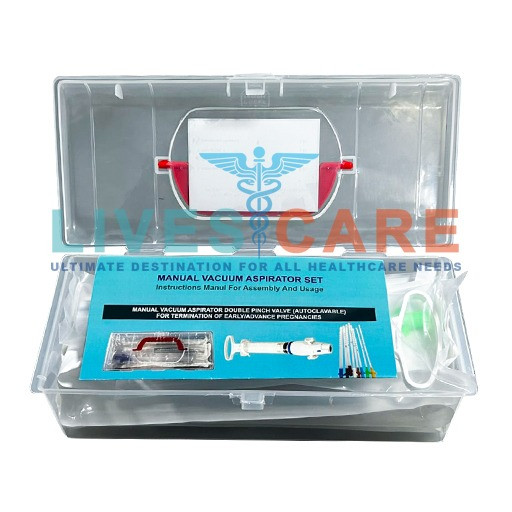

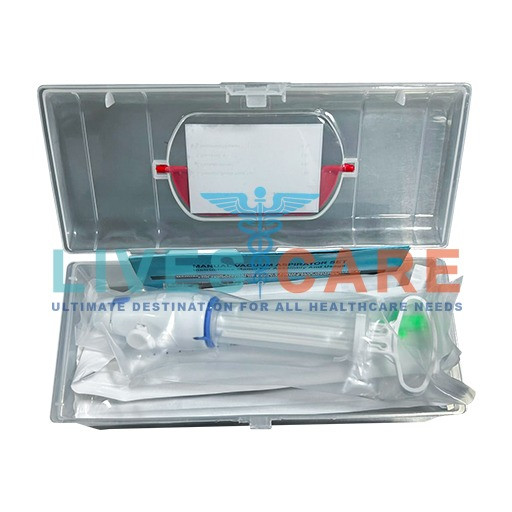

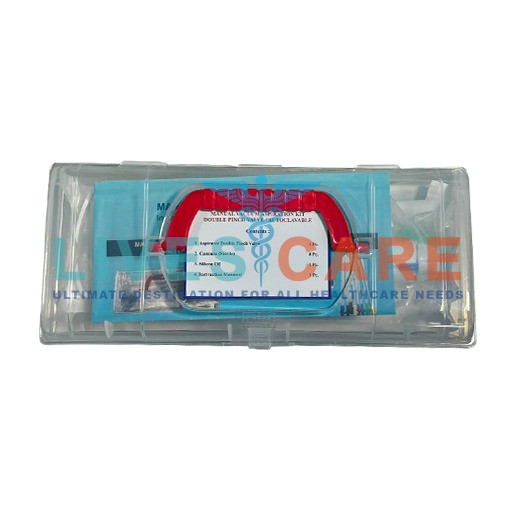

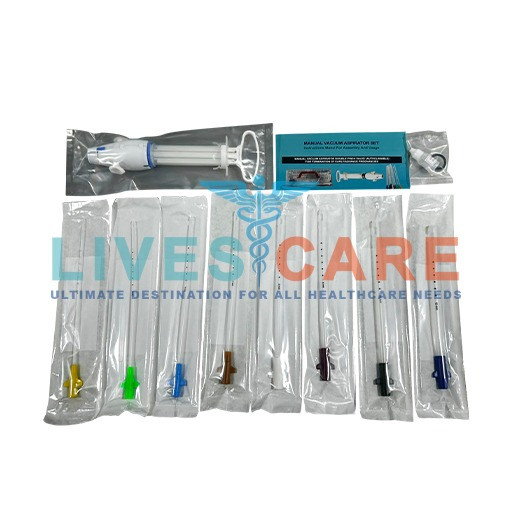

Manual Vacuum Aspirator Kit (MVA) Kit is containing of:

Autoclavable Double Valve MVA (Manual Vacuum Aspirator) Syringe with a capacity of 60ml.

All accessories including silicone oil.

Karman Cannula sizes 4, 5, 6, 7, 8, 9, 10 & 12, one each

Detailed information of Double Valve MVA Syringe:

Components of Manual Vacuum Aspirator Double Pinch Valve Syringe, 60ml

Detailed information

Plunger

A component that inserts into the cylinder and when pulled creates the vacuum. Material: Polypropylene.

Cylinder

Main holding vessel of the aspirator. Material: Polypropylene

Valve Body

Case to enclose the valve mechanism. Material: Polypropylene.

Collar Stop

Clip on top of the cylinder, which prevents the plunger from being removed from the cylinder. Material: Polypropylene

O-ring

A rubber ring(Black) is inserted onto the end of the plunger making the plunger slide into The cylinder and creating a vacuum.

Material: Buna-Nitrile rubber(Synthetic Rubber)
Buttons

Knobs when pressed close off the liner that creates a vacuum when the plunger is pulled.

Material: Polypropylene
Liner Clamp

A mechanism that closes off the liner, which creates a vacuum in the cylinder when the plunger is pulled.

Material: Polypropylene
Liner

The soft tubular part clamps off to create the vacuum.

Material: Poly-dimethylsiloxane (Silicone Rubber)
Valve Cap

The component at the end of the valve body. Helps to hold the cannulae or adapter in place.

Material: Polypropylene

Polypropylene Barrel Capacity 60 ML.

Suction capacity: Provides above 24 inches of hg ( mercury)/609.6 mm of hg( mercury) Vacuum. Maintain this vacuum for more than Sixty minutes.

Compatible with fixed adapter Karman cannulae sizes 4-12 mm.

The valve liner is removable by opening a hinged valve body. Double locking valve allowing the creation of vacuum prior to the procedure. The valve liner provides a clear fluid path.

The aspirator features a secure stopping mechanism for the plunger when pulled. The collar stop is able to be displaced or removed for removal of plunger. A cylinder is marked in 10cc increments to measure evacuated uterine contents.

With an ergonomic handle.

Aspirators is able to be boiled and steam sterilized (autoclaved) at 250°F or 121°C. Can be sterilized with STERRAD 100s and can be processed by standard cold methods.

Shelf life: 5 years from the month of manufacture.

Suitable to be reused a minimum of 25 - 50 times under normal use and maintenance.

ALSO AVAILABLE SAME SET WITH SINGLE-VALVE MVA SYRINGE

SEND ENQUIRY DOWNLOAD CATALOGUE

‘We reserve the right to alter the designs & features of products for advancement without notice’
